Fully-threaded studs, double-end studs, and threaded rod for flanged piping, hanger systems, anchorage, and machinery assembly. Carbon, alloy, stainless, and exotics — cut, chamfered, marked, and shipped.
A193 B7 and B16 — heat-treated chrome-moly stud bolts for ASME flange and pressure-vessel service up to ~1100°F.
A320 L7 and L43 are Charpy-tested at −150°F for cryogenic and cold-weather service — LNG, ammonia, refrigeration.
Threaded rod cut, deburred, and chamfered both ends — from short tap-end studs up through 12 ft anchor rod.
Plain, hot-dip galvanized, mech zinc, PTFE / Xylan, cad. MTRs, PMI, and lot traceability furnished on request.
Stud bolts and threaded rod are the long, fully-threaded fastener forms — used wherever a hex bolt would run out of grip length, where you need to grab a nut on each end, or where you'd rather buy stock and cut to size on the job.
The bulk of what we ship in this category is ASTM A193 stud bolts for flanged piping (B7, B8, B8M, B16) and threaded rod in everything from A36 mild steel up through 316 stainless. Both cut to length, chamfered, head-stamped, and matched with their nuts.Looking for foundation anchor rod with a hooked or headed end? See F1554 anchor bolts.
Stocked in random and 12-foot lengths — cut, chamfered, marked, and shipped with matching nuts where the spec calls for them.

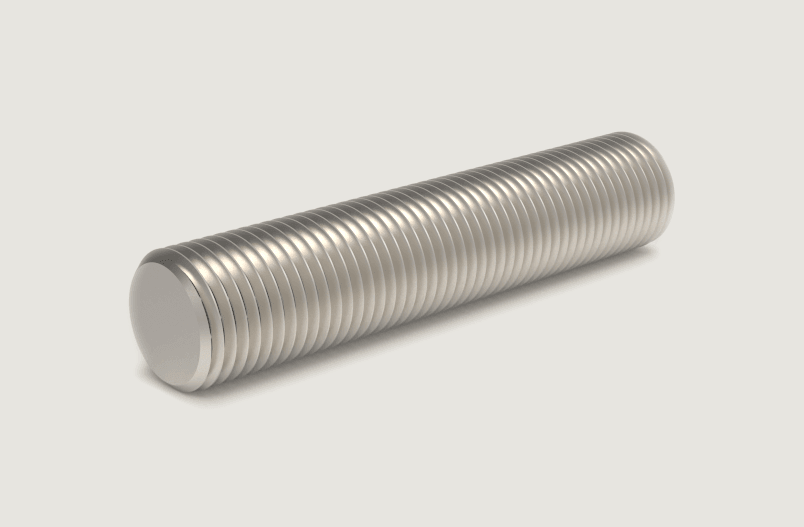

Fully-threaded, chamfered both ends, marked per ASME B16.5. The default flange-bolt form for ASME pressure piping.

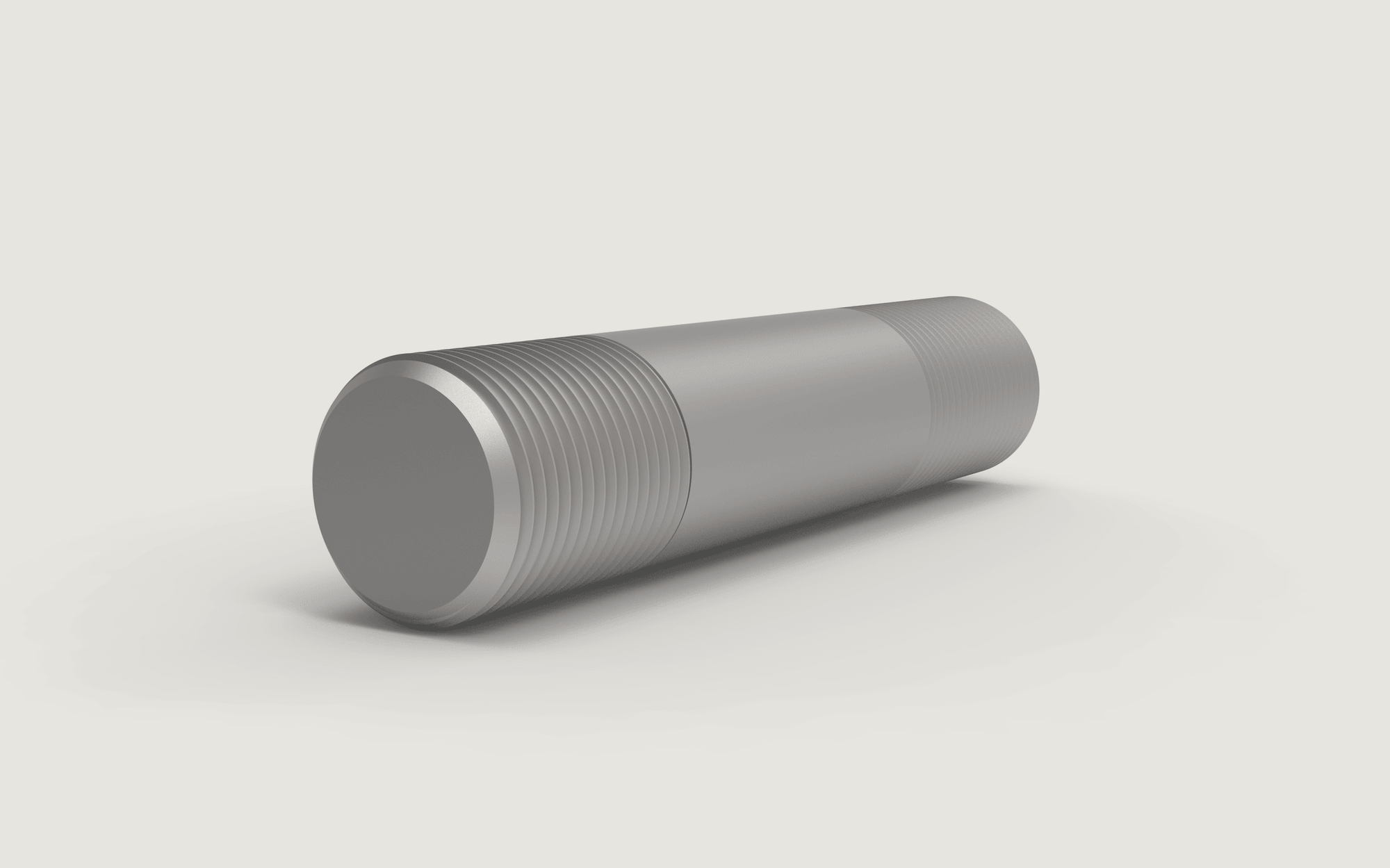

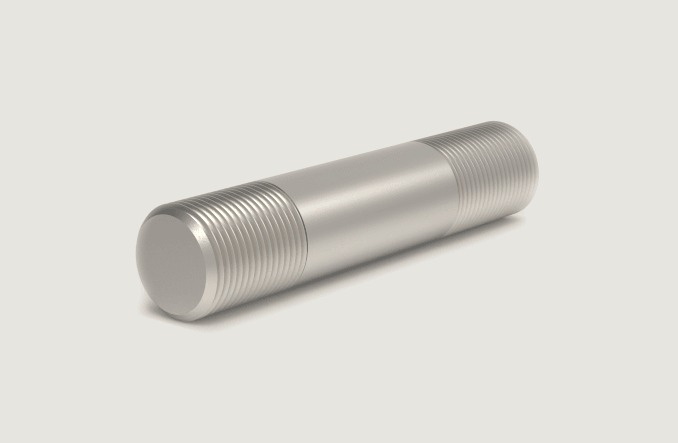

Threaded ends with an unthreaded body — tap-end and nut-end variants for blind-tapped flanges, valve bonnets, and machinery joints.

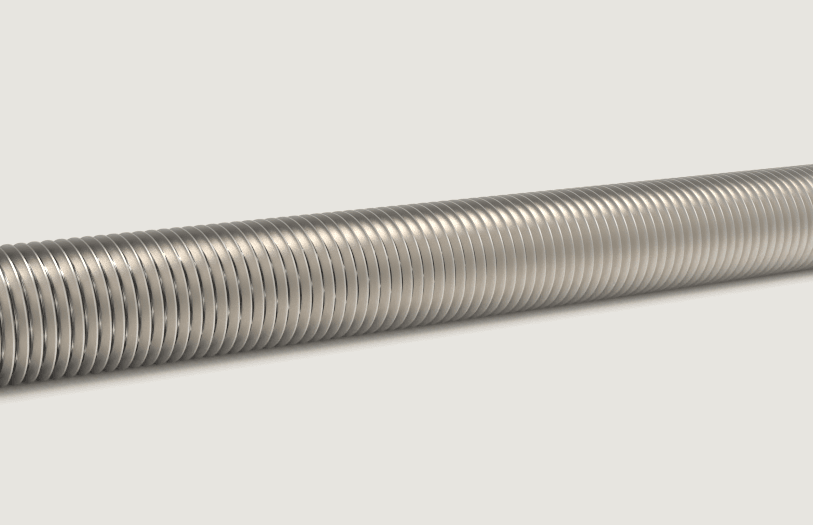

12-foot stock rod, fully threaded, in carbon, alloy, and stainless. Cut to any length on saws or with our shear; chamfered ends.

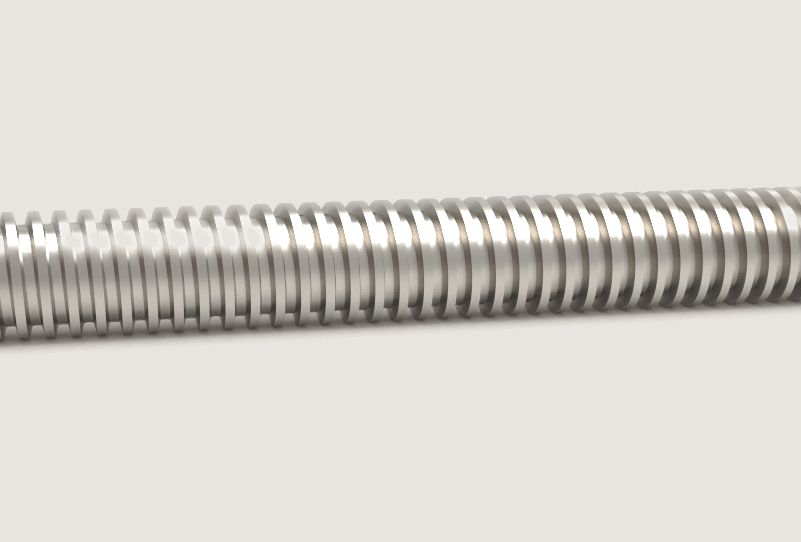

Trapezoidal-thread rod for jacks, screw conveyors, lead screws, vise spindles. Right-hand and left-hand thread, in C1018 and 304.

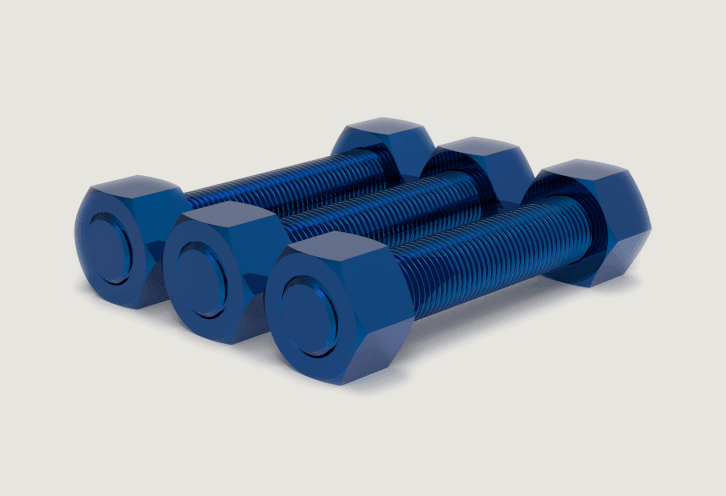

Joint-ready kits — studs, two A194 heavy hex nuts, and F436 washers per joint, bagged and banded by line item. Pull a flange off the trailer, grab a bag, make the joint.

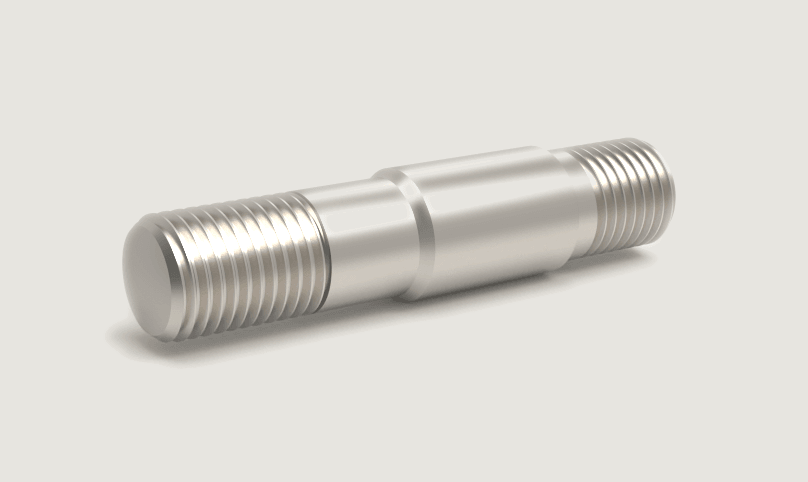

Specials cut to print on our in-house CNC — shoulder studs, stepped studs, drilled or cross-bored rod, custom thread reliefs, reduced shanks. Prototype runs to scheduled production.
Same shape on the bench. Different intent on the drawing. The distinction shows up in the chamfer, the marking, the length tolerance, and how it ships.
A finished, headstamped fastener cut to a specific bolt length for a specific joint — most often a flanged piping connection sized per ASME B16.5.
Continuous threaded stock — bought by the stick, cut on the job. The right form when the user is going to grab a length and trim it to fit.
We keep an active inventory of stud bolts, threaded rod, and matching A194 nuts in the sizes and grades the petrochemical, power, and structural markets call out most. Cuts, finishes, and assemblies turn around quickly — most orders ship same week.
Most of our stud and rod work falls into one of three areas. Tell us the industry and the line item, and we'll pull the right grade, finish, and length.
Most of what ships out of this category is cut to length on our saws. Cut, deburred, chamfered both ends, color-banded by lot, and packaged with the matching nuts.
For a stud, the coating is half the spec. PTFE / Xylan resists thread galling and seizing; HDG buys you years of outdoor service; cad and zinc are general-purpose. Pick the wrong one and the next maintenance crew can't get the joint apart.
Pressure-piping studs ship to a paper trail the inspector and code-stamp shop expect to see. Standard with every order where the spec calls for it.
MTRs / Mill Test Certificates tied to the heat and lot on every shipment. Mechanical & chemistry per A193 / A320 / F593.
Lot-by-lot hardness (HRC, HBW) and tensile data on alloy and Q&T grades. Charpy impact data on A320 grades.
Positive Material Identification by XRF or OES, ordered per-lot when your QA program calls for it. Common on B7 / B8M flange jobs.
Hardness-controlled studs (B7M, L7M) when the project spec calls for them — flag it on the RFQ.
Domestic-melt / domestic-pour material with full documentation. Common on defense, AASHTO bridge, and Caltrans work.
Stud Bolts & Threaded Rod is the long-form, cut-to-length world. If your project lives one step over, start here instead.
Send the line list, the flange schedule, or just diameters and lengths. A bolt specialist will come back with a quote, usually inside 24 hours.
From a single B7 stud cut to length to a full flange package with PTFE and PMI — we've shipped the package before.
